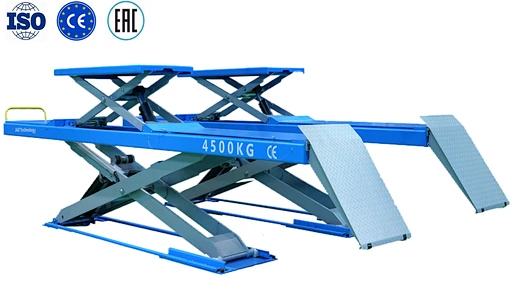

4T Scissor lift
Model No: L-S-9

Scissor lift

·  4000 KG(9,000 LB) lifting Capacity
·  Up to 1800mm max lifting height
·  Large Platform
·  surfaced mounted or flush mounted
·  Air actuated locks
·  Zerk grease fittings at each hinge point
·  Separate Self-Contained Control Panel
Quantity :
Contact Now
Scissor liftScissor liftScissor liftScissor liftScissor lift4T Scissor lift4T Scissor lift4T Scissor lift4T Scissor lift4T Scissor lift
Technical DataUntra-thin Scissor liftUntra-thin Scissor liftUntra-thin Scissor liftUntra-thin Scissor liftUntra-thin Scissor lift
Alignment Scissor liftAlignment Scissor liftAlignment Scissor liftAlignment Scissor liftAlignment Scissor lift
MODEL NO.L-S-9
Lifting Capacity4T/9000lb
Rolling Jack Copacity4T/9000lb
Lifting Height1800mm/70.9"
Rolling Jack Lifting Height500mm/19.7"
Length overall5530mm/217.7"
Width overall2200mm/86.6"
Runway Length660mm/26"
Distance between runways880mm/34.6"
Lifting Time50s
Power Supply380v 220v 2.2kw
productproductproduct

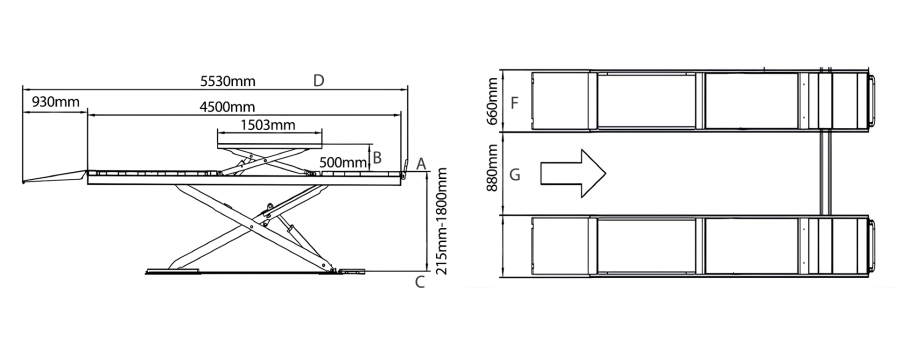

Overall Dimension
4T Scissor lift Overall Dimension

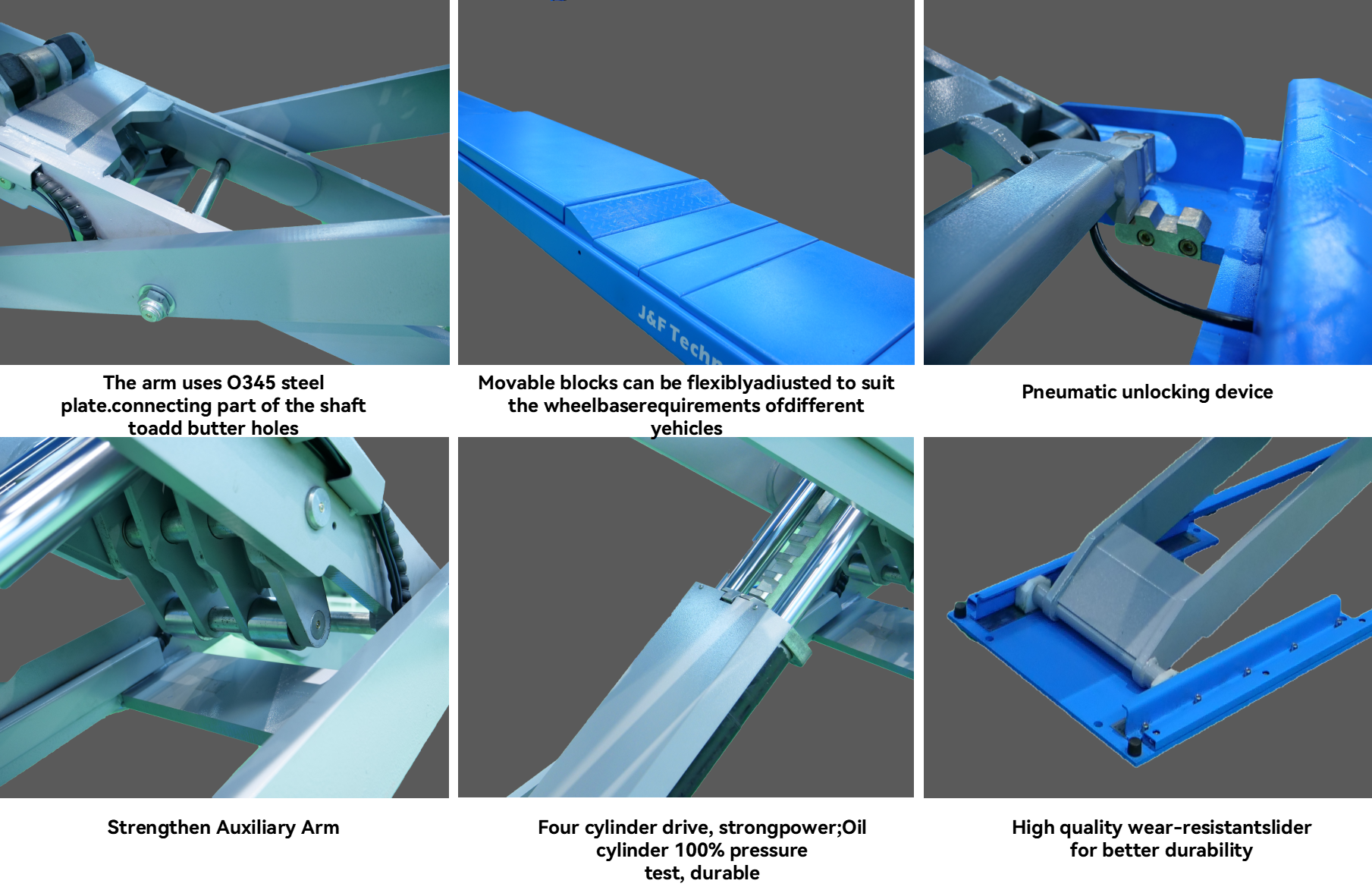

Features

4T Scissor lift Features
Optional Parts
4T Scissor lift Optional Parts
