Model No: TC160

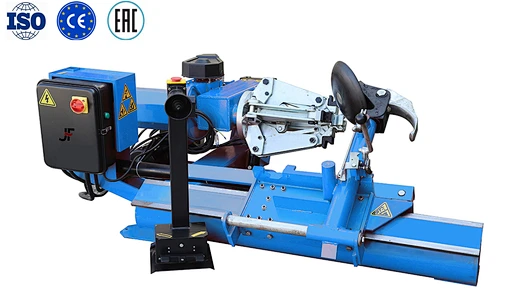

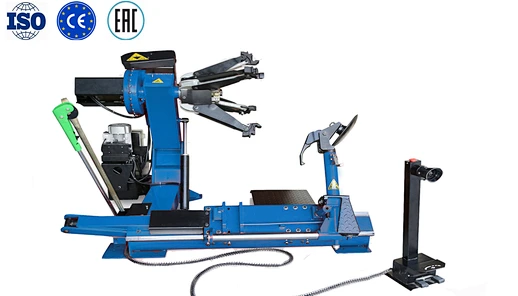

Truck Tyre Changer
. Movable low-voltage control unit, easy to operate
. Operation voltage 24V, safety and stable
. Universal assembly arm is equipped with pendular assembly round plate and assembly hook
. Apply to the rim diameter between 14"-26".
. Lifting arm and universal chuck are all driven by the hydraulic system
. The clamping force adopts infinite regulation
. Operation voltage 24V, safety and stable
. Universal assembly arm is equipped with pendular assembly round plate and assembly hook
. Apply to the rim diameter between 14"-26".
. Lifting arm and universal chuck are all driven by the hydraulic system
. The clamping force adopts infinite regulation
Quantity :
Truck Tyre ChangerTruck Tyre ChangerTruck Tyre ChangerWheel stripping machineWheel stripping machineWheel stripping machine
Technical DataLifting arm and universal chuck are all driven by the hydraulic systemLifting arm and universal chuckniversal chuck are all driven by the hydraulic systemLifting arm and universal
Lifting arm and universal chuck are all driven by the hydraulic systemLifting arm and universal chuck are all driven by the hydraulic system
| MODEL NO. | TC160 |
| Rim Dia | 14"-26" |
| Max. Tire Weight | 500kg |
| Max.Tire width | 780mm |
| MaxTire Dia | 1600mm |
| Hydraulic Pressure Pump Motor | 1.5kw 380v-3ph 50hz |
| Gear Box Motor | 1.5kw 380v-3ph 50hz |
