Model No: L-2C-55E
5.5T/120000lbs,OH-type, Electric lock manual release
· 5500KG lifting capacity
· Electric lock manual release
· The power unit is equipped with throttling device, which can adjust the descending speed at any time;
· 24V limit switch is standard
· The rubber support pad adopts spiral adjustment height and phased adjustment height, which are randomly selected
· The standard door protective rubber block protects the door from damage
· Standard safety guardrail for toe protection
· Tested at 115% dynamic and 150% static
· Electric lock manual release
· The power unit is equipped with throttling device, which can adjust the descending speed at any time;
· 24V limit switch is standard
· The rubber support pad adopts spiral adjustment height and phased adjustment height, which are randomly selected
· The standard door protective rubber block protects the door from damage
· Standard safety guardrail for toe protection
· Tested at 115% dynamic and 150% static
Column type :
Quantity :
12000 lbs category Car Lift12000 lbs category Car Lift12000 lbs category Car Lift5.5T category car lift5.5T category car lift5.5T category car lift
Technical DataElectric lock two post liftElectric lock two post liftElectric lock two post lift
two post clear floor lifttwo post clear floor lifttwo post clear floor lifttwo post clear floor lift
| MODEL NO. | L-2C-55S | L-2C-55E |
| Lock Release System | Single Point | Electric/Automatic |
| Lifting Capacity | 5500kg(12000lb) | 5500kg(12000lb) |
| Max Lifting Height | 1880mm(74") | 1880mm(74") |
| Min Height | 100mm(3.9°) | 100mm(3.9°) |
| Drive Through | 2530mm(100*)/2455mm(97") | 2530mm(100*)/2455mm(97") |
| Lifting Time | 50s | 50s |
| Overall Height | 4420mm(174) | 4420mm(174) |
| Electricity supply | Muttiple choice for 110/220/230/240/380/400/415V | |
Overall Dimension
Two post car liftTwo post car liftTwo post car lift

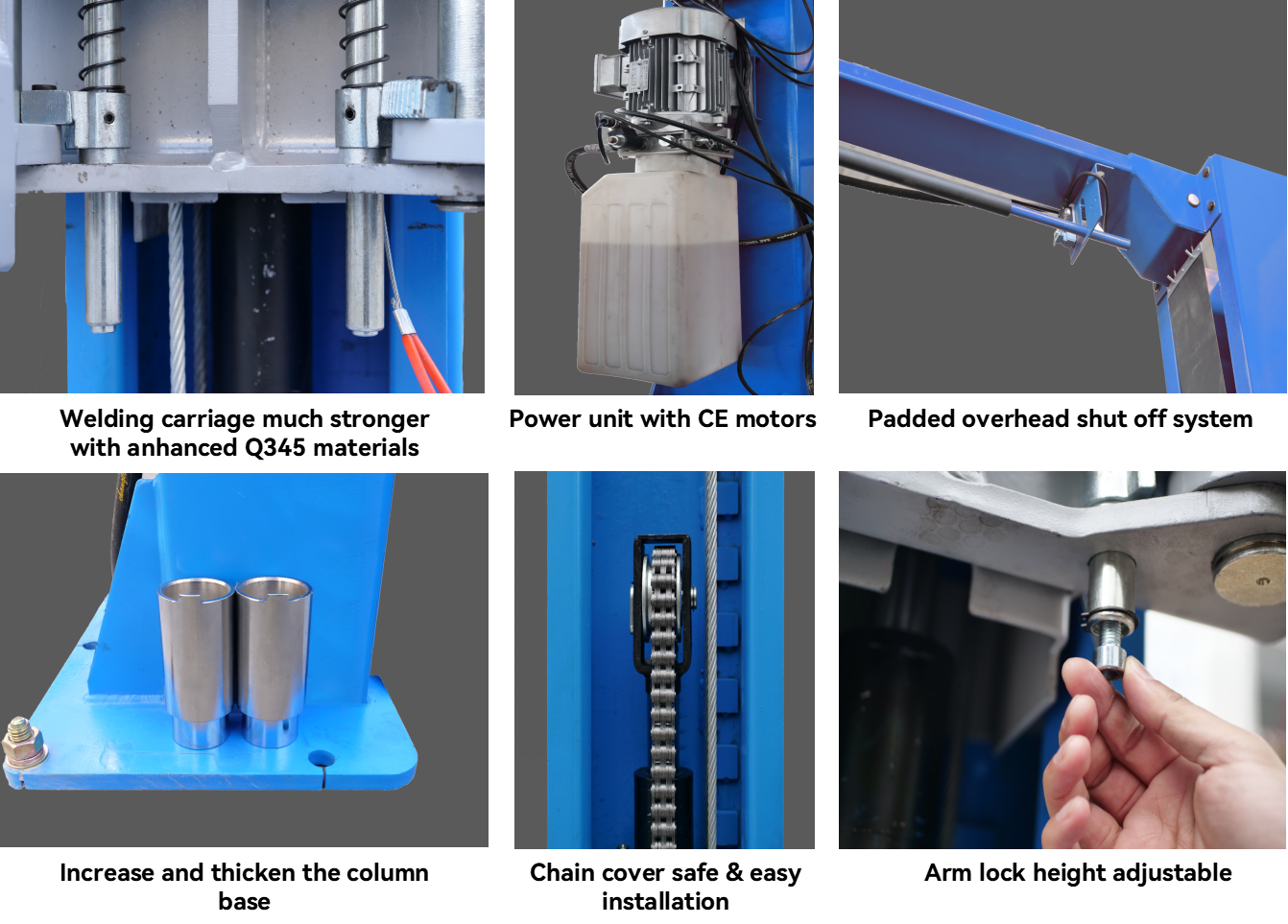

Features

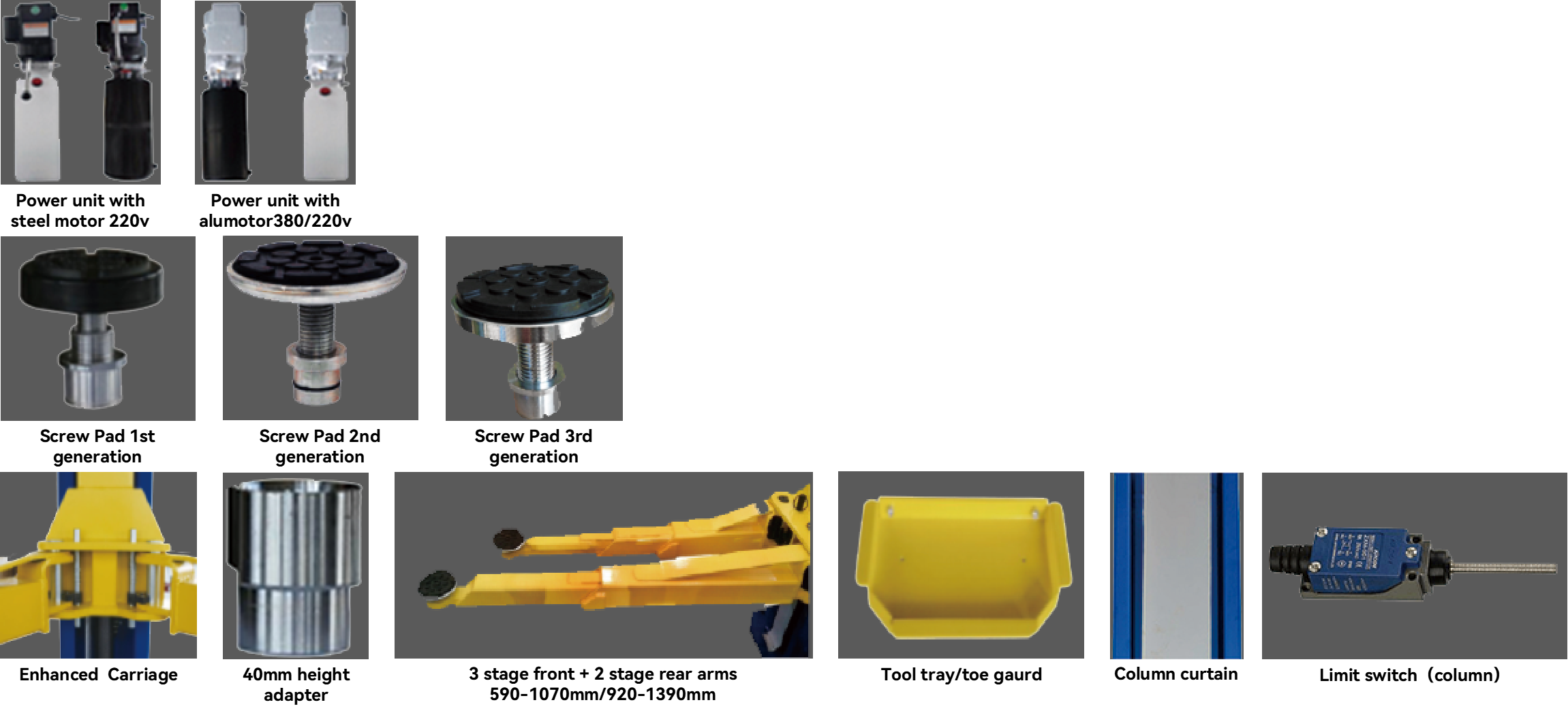

Optional Parts
