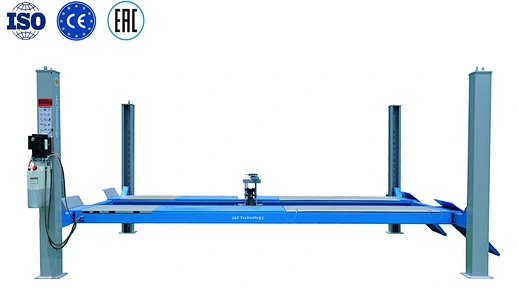

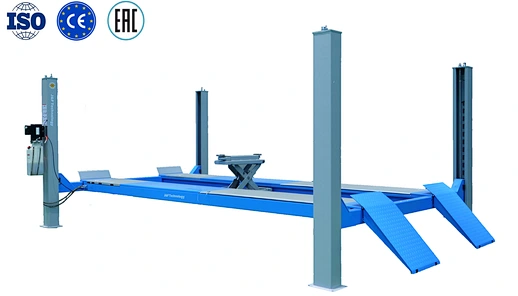

Four post car lift
Model No: L-4-50B

Four post car lift

· 5000 KG(12,000 LB). Capacity
· 1800mm max lifting height
· Integrated advanced technology, popular types and common in European countries.
· Featuring unique design
· Advanced workmanship
· Car maintenance , major repair work
Quantity :
Contact Now
Four post car liftFour post car liftFour post car liftFour post car liftAuto repair elevatorAuto repair elevatorAuto repair elevatorAuto repair elevator
Technical Data4T car lift4T car lift4T car lift4T car lift

MODEL NO.L-4-40BL-4-50B
Lifting Capacity4Ton/9000lb5Ton/10000lb
Max Lifting Height175-1800mm/6.9"-70.9”175-1800mm/6.9"-70.9”
Drive Through
2530mm/100"
2455mm/97"
2530mm/100"
2455mm/97"
Runway Length(mm)4420mm/174"4420mm/174"
Runway Width(mm)490mm/19.3"490mm/19.3"
Lifting Time50s50s
Overall Height2420mm/95.3"2420mm/95.3"
Electricity supplyMuttiple choice for
110/220/230/240/380/400/415V

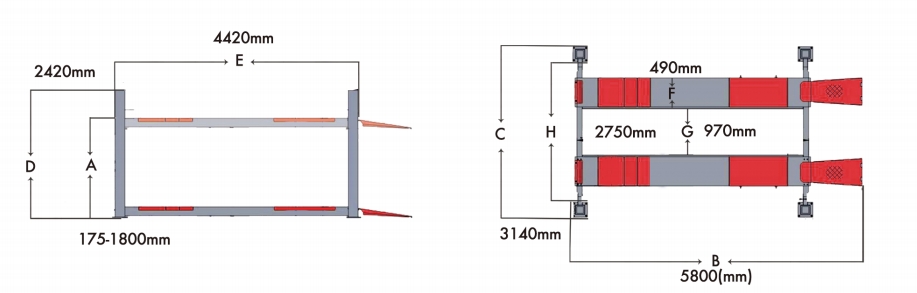

Overall Dimension

Four post car lift Overall Dimension

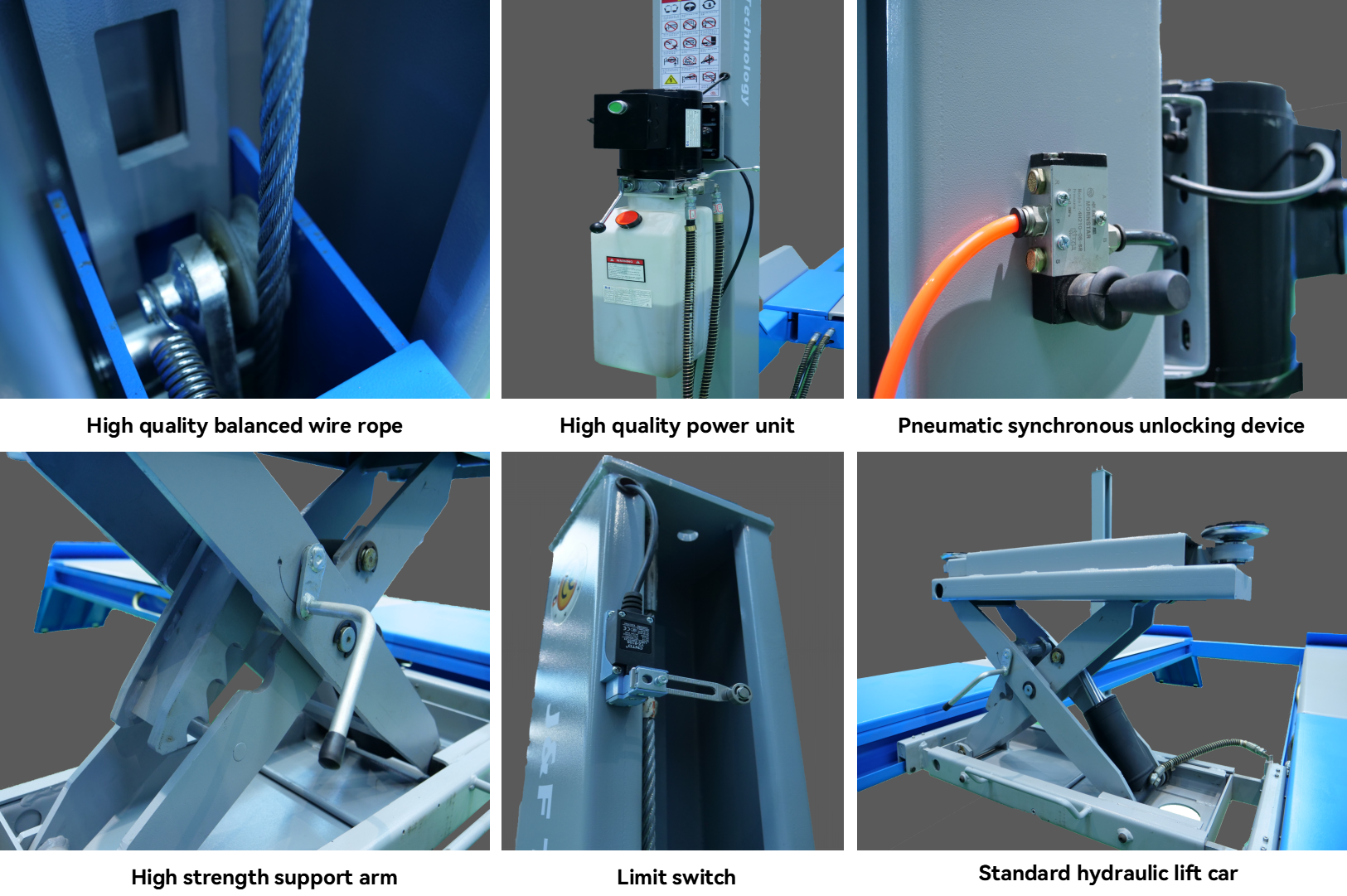

Features

Four post car lift Features

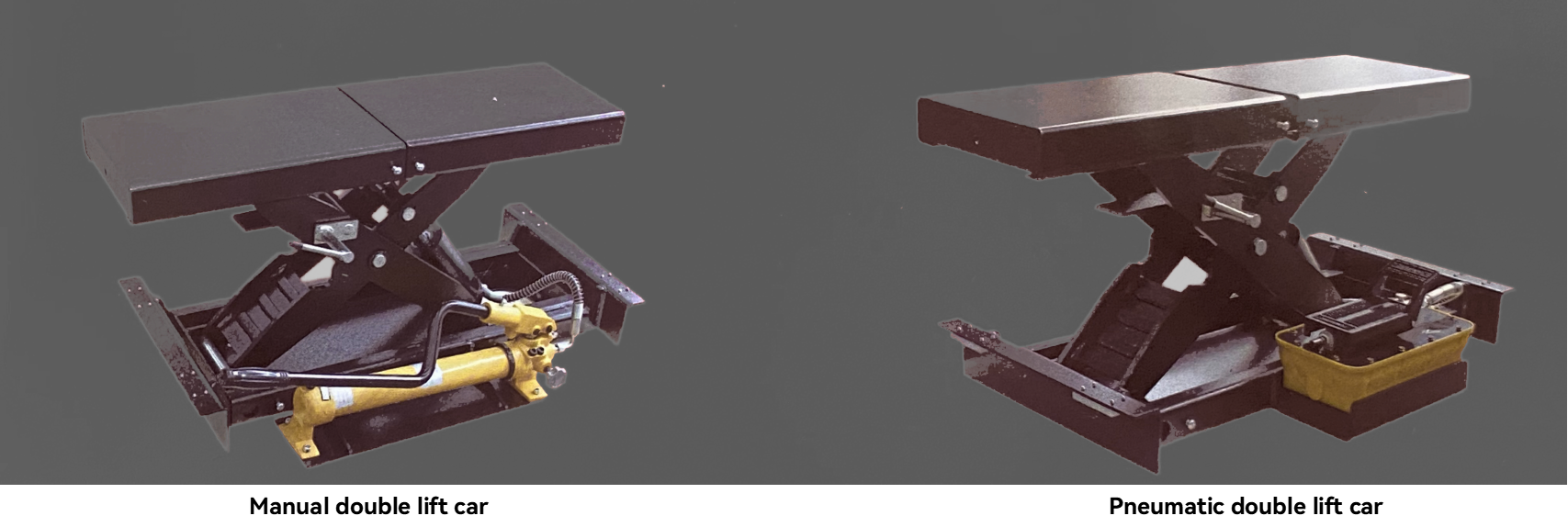

Optional Parts
Four post car lift Overall Dimension
