Model No: L-2-40D
4T/9000lbs,FP-type,Double lock manual release
· 4000KG lifting capacity
· 1800mm lifting height with dedicated drop-in pad
· 50 seconds lifting time
· Double lock release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Base Plate type for low ceiling workshops and garges
· Durable cylinders in each column carry with anti-surge valves
· Screw-up lifting pads can maximize the lifting height
· 2-stage symmetric arms, more flexible
· The arm locks engage and disengage automatically
· Optional aluminum motor avoids overheating and ensures long service life
· Durable powder coating
· Standard door protection pads to prevent possible damage when open the door without caution
· Pre-fixed hydraulic pressure prevents overloading operation
· CE certificated
· 1800mm lifting height with dedicated drop-in pad
· 50 seconds lifting time
· Double lock release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Base Plate type for low ceiling workshops and garges
· Durable cylinders in each column carry with anti-surge valves
· Screw-up lifting pads can maximize the lifting height
· 2-stage symmetric arms, more flexible
· The arm locks engage and disengage automatically
· Optional aluminum motor avoids overheating and ensures long service life
· Durable powder coating
· Standard door protection pads to prevent possible damage when open the door without caution
· Pre-fixed hydraulic pressure prevents overloading operation
· CE certificated
Quantity :
Technical Data9000 lbs category Car Lift9000 lbs category Car Lift9000 lbs category Car Lift9000 lbs category Car Lift9000 lbs categ
| MODEL NO. | L-2-40D | L-2-40S | L-2-40E |
| Lock Release System | Double Point | Single Point | Electric/Automatic |
| Lifting Capacity | 4000kg/9000lb | 4000kg/9000lb | 4000kg/9000lb |
| Max Lifting Height | 1800mm/70.9” | 1800mm/70.9” | 1800mm/70.9” |
| Min Height | 100mm/3.9" | 100mm/3.9" | 100mm/3.9" |
| Drive Through | 2530mm/100" | 2530mm/100" | 2530mm/100" |
| Lifting Time | 50s | 50s | 50s |
| Overall Height | 2720mm/107" | 2720mm/107" | 2720mm/107" |
| Electricity supply | Muttiple choice for 110/220/230/240/380/400/415V | ||

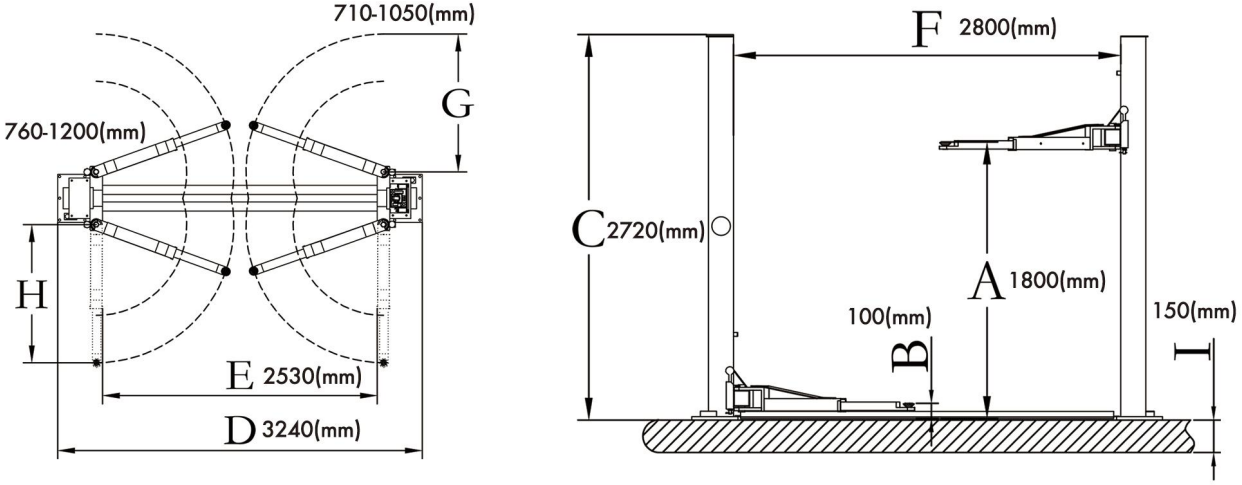

Overall Dimension4T category car lift4T category car lift4T category car lift4T category car lift4T category car lift
two post car lifttwo post car lifttwo post car lifttwo post car lifttwo post car lift
two post car lifttwo post car lifttwo post car lifttwo post car lifttwo post car lift

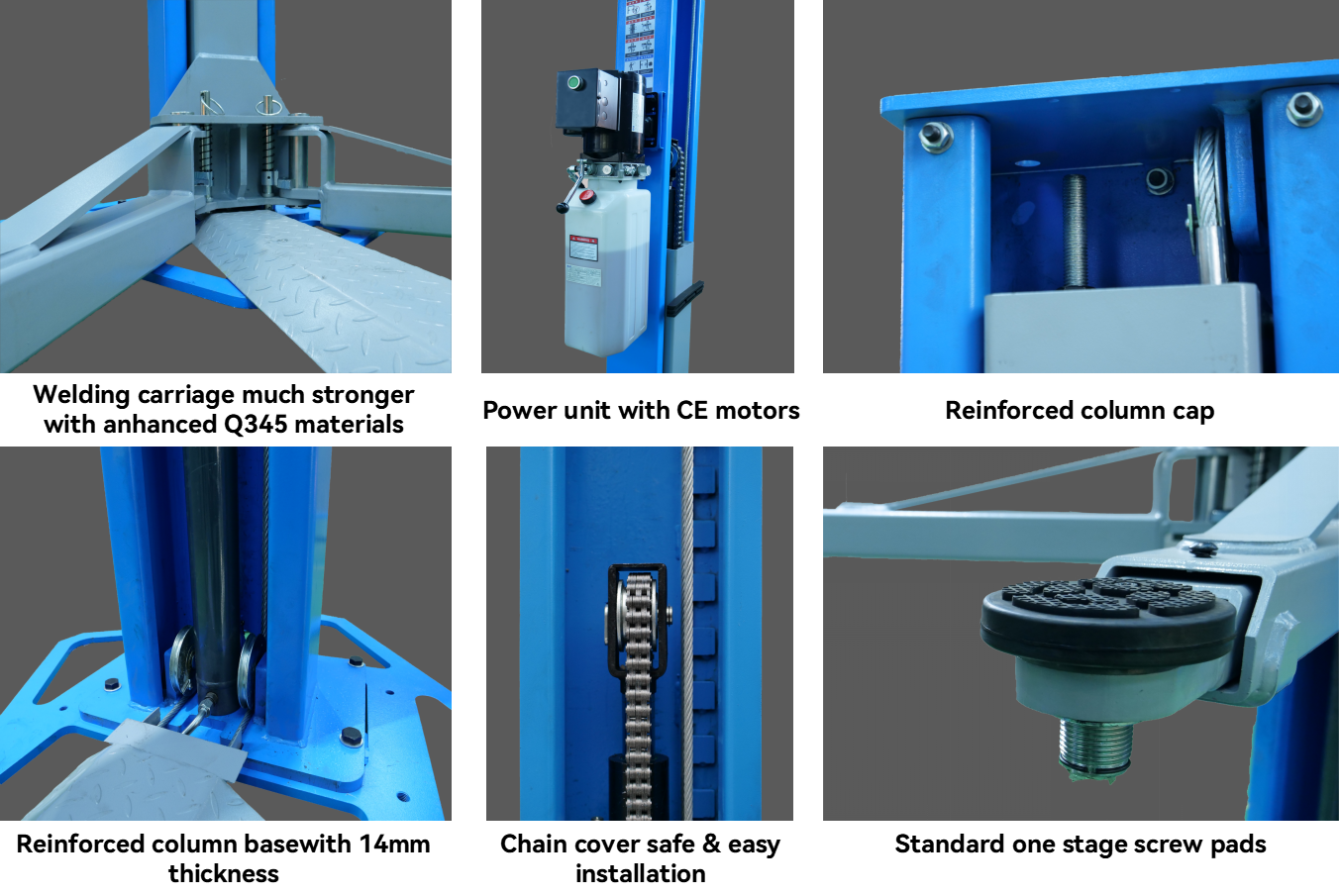

Featuresdouble lock two post liftdouble lock two post liftdouble lock two post liftdouble lock two post liftdouble lock two post lift00
0KG lig9000 lbs category Car Lift
Optional Partstwo post floor plate lifttwo post floor plate lifttwo post floor plate lifttwo post floor plate lifttwo post floor plate lift· 4000KG lifting capacity· 2000mm lifting height with standard truck adapter· Double lock release, convenient to release the colum
