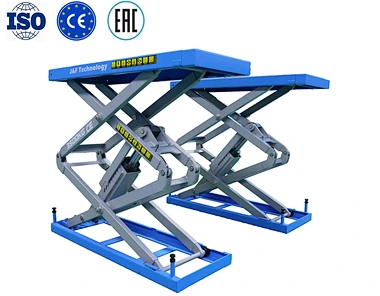

L-S-5
Model No: L-S-5

Scissor lift

·  3000 KG(7,000 LB). Capacity
·   up to 2130mm max lifting height
·  Adjustable width
·  Open middle for easy access
·  Locking approach ramps
·  Air actuated locks
·  Zerk grease fittings at each hinge point
·  Separate Self-Contained Control Panel
Quantity :
Contact Now
Underground Scissor liftUnderground Scissor liftUnderground Scissor liftSeparate Self-Contained Control Panel
Technical DataUnderground Scissor liftSeparate Self-Contained Control PanelSeparate Self-Contained Control Panel3
r3T Scissor lift3T Scissor lift3T Scissor liftL-S-5L-S-53T Scissor liftSeparate Self-Contained Control PanelSeparate Self-Contained Control Panel
MODEL NO.L-S-5
Lifting Capacity3Ton/7000lb
Max Lifting Height         300-2130mm/11.8"-83.8"
Length overall1550-1750mm/61"-68.9"
Width overall1920mm/75.6"
Runway Length1450mm/57"
Distance between runways805mm/31.7"
Lifting Time50s
Power Supply380v 3ph 50hz 220v 1ph 50hz

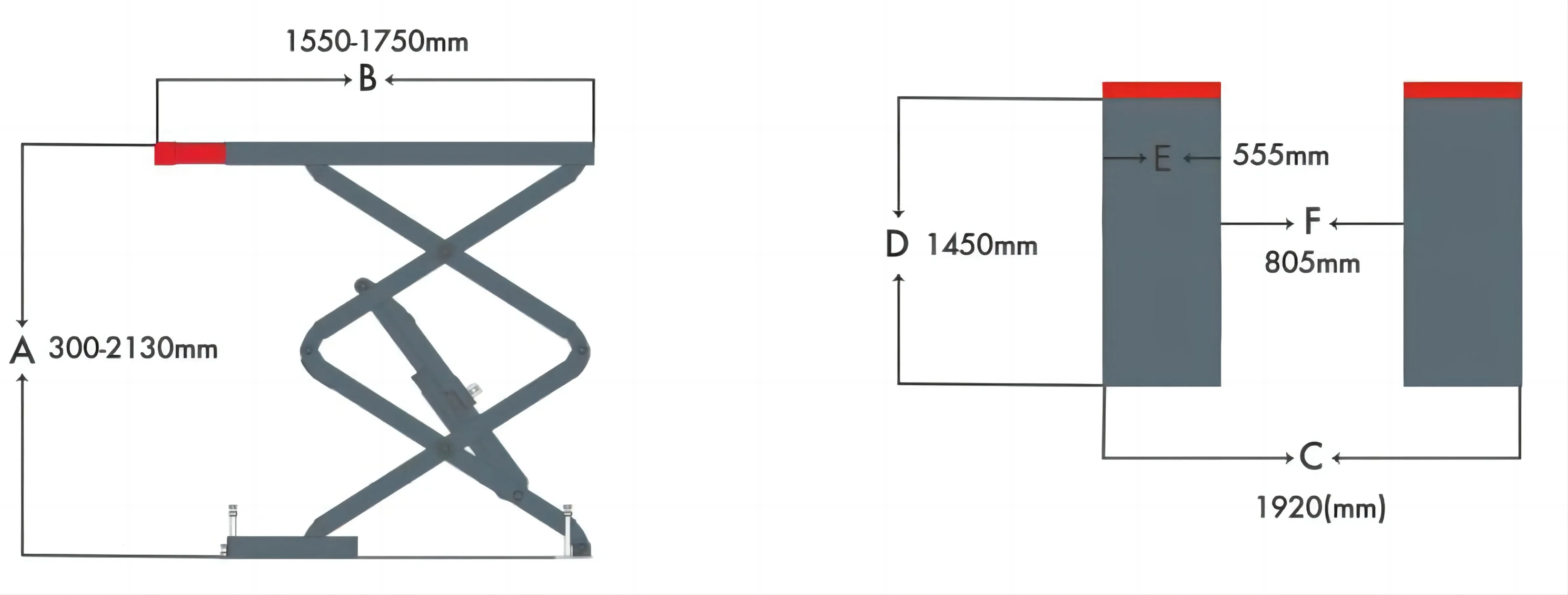

Overall Dimension

Underground Scissor lift Overall Dimension

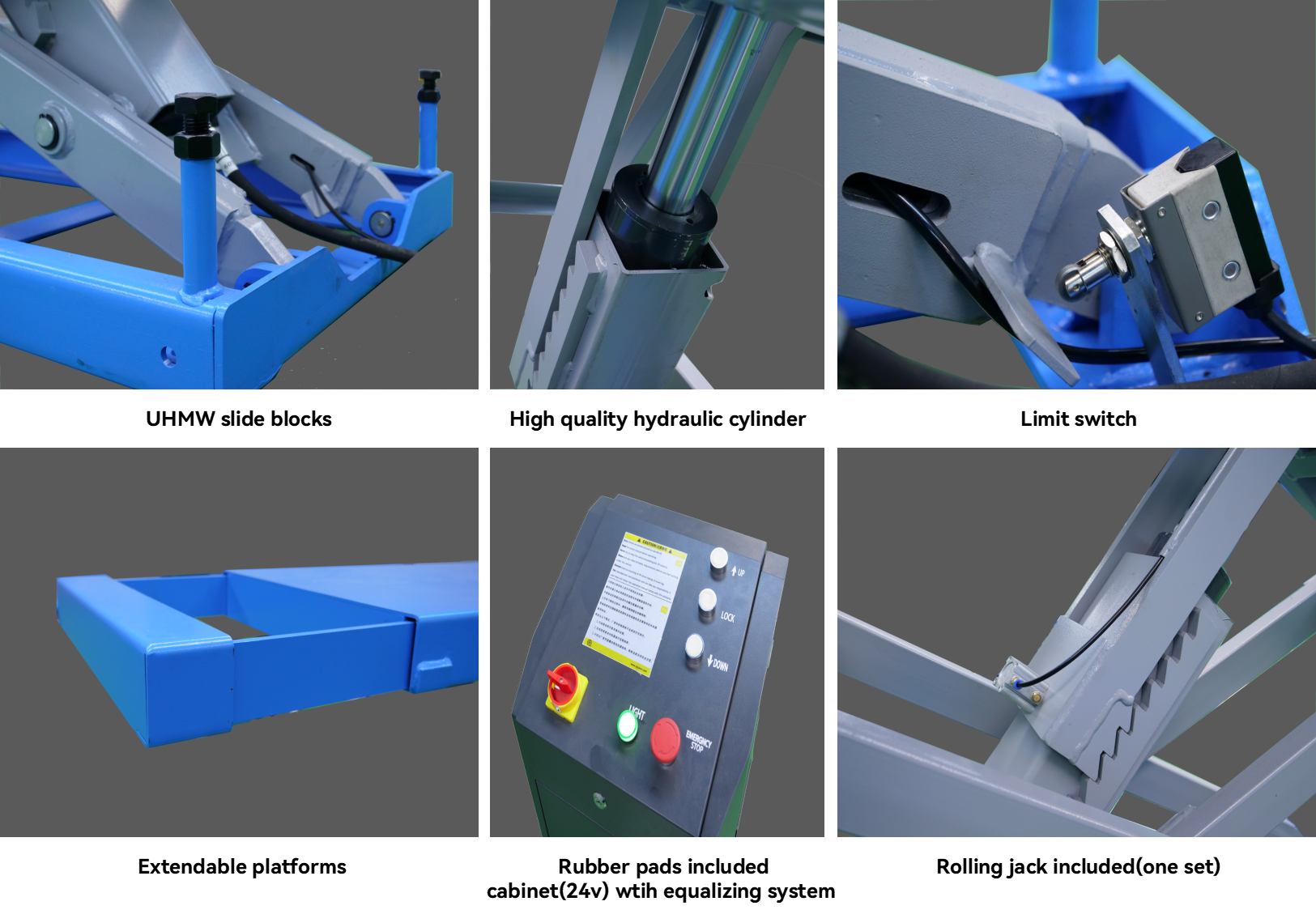

Features

Underground Scissor lift Features
Optional Parts
Underground Scissor lift Optional Parts
