L-S-7
Model No: L-S-7

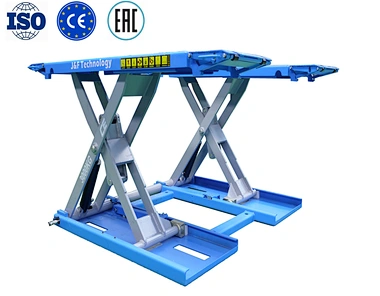

Scissor lift

·  3000 KG(7,000 LB). Capacity
·  Up to 1000mm max lifting height
·  No above ground obstruction
·  Air actuated locks
·  Movable kit optional
·  Separate Self-Contained Control Panel
Quantity :
Contact Now

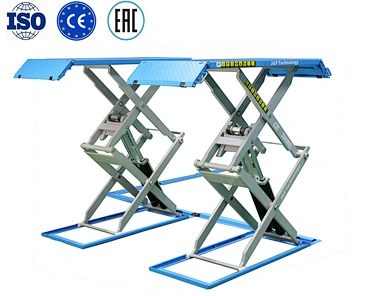

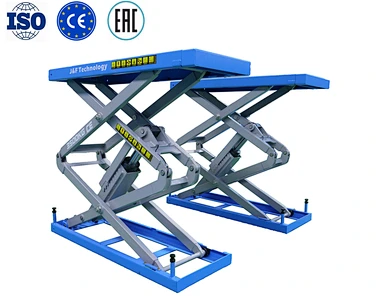

L-S-73T Scissor lift3T Scissor liftPortable Scissor liftPortable Scissor liftPortable Scissor lift
Technical Data
No above ground obstructionNo above ground obstructionNo above ground obstructionNo above ground obstruction
MODEL NO.L-S-7
Lifting Capacity3Ton/7000lb
Lifting Height            100-1000mm /3.9"-39.4”
Length overall2020mm/79.5”
Width overall1760mm/69.3"
Runway Length1420mm/55.9"
Distance between runways840mm/33.1"
Lifting Time50s
Power Supply380v 3ph 50hz220v 1ph 50hz

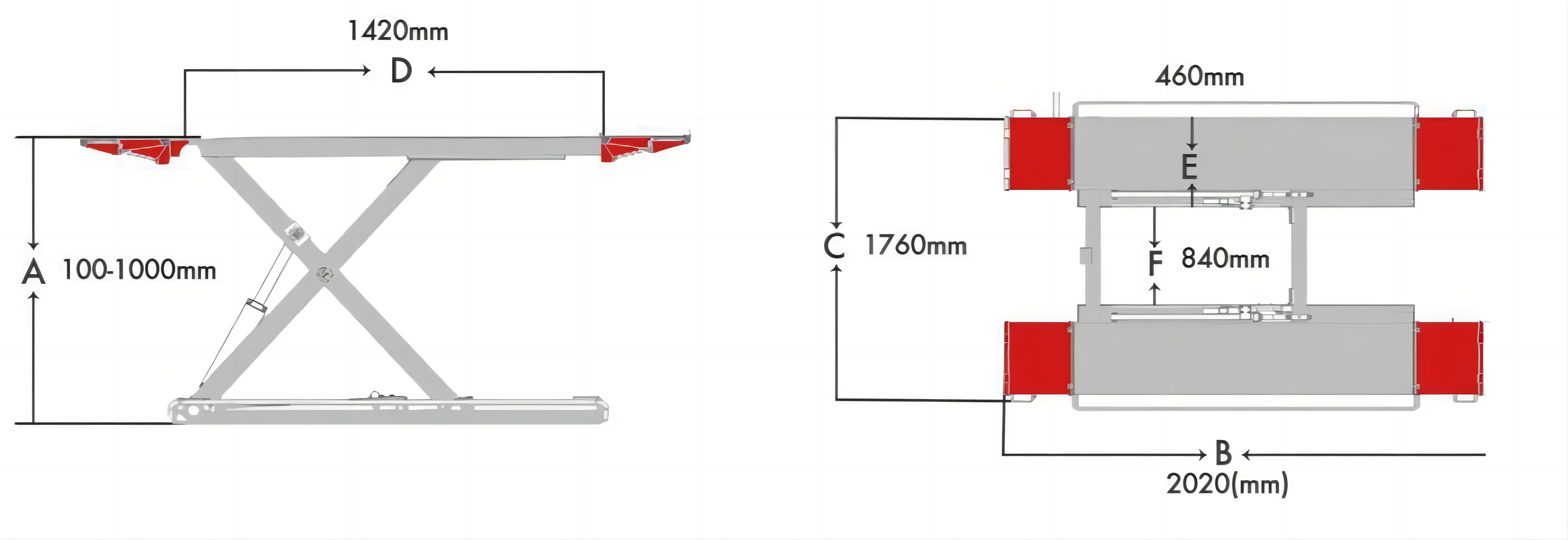

Overall Dimension

3T Scissor lift Overall Dimension

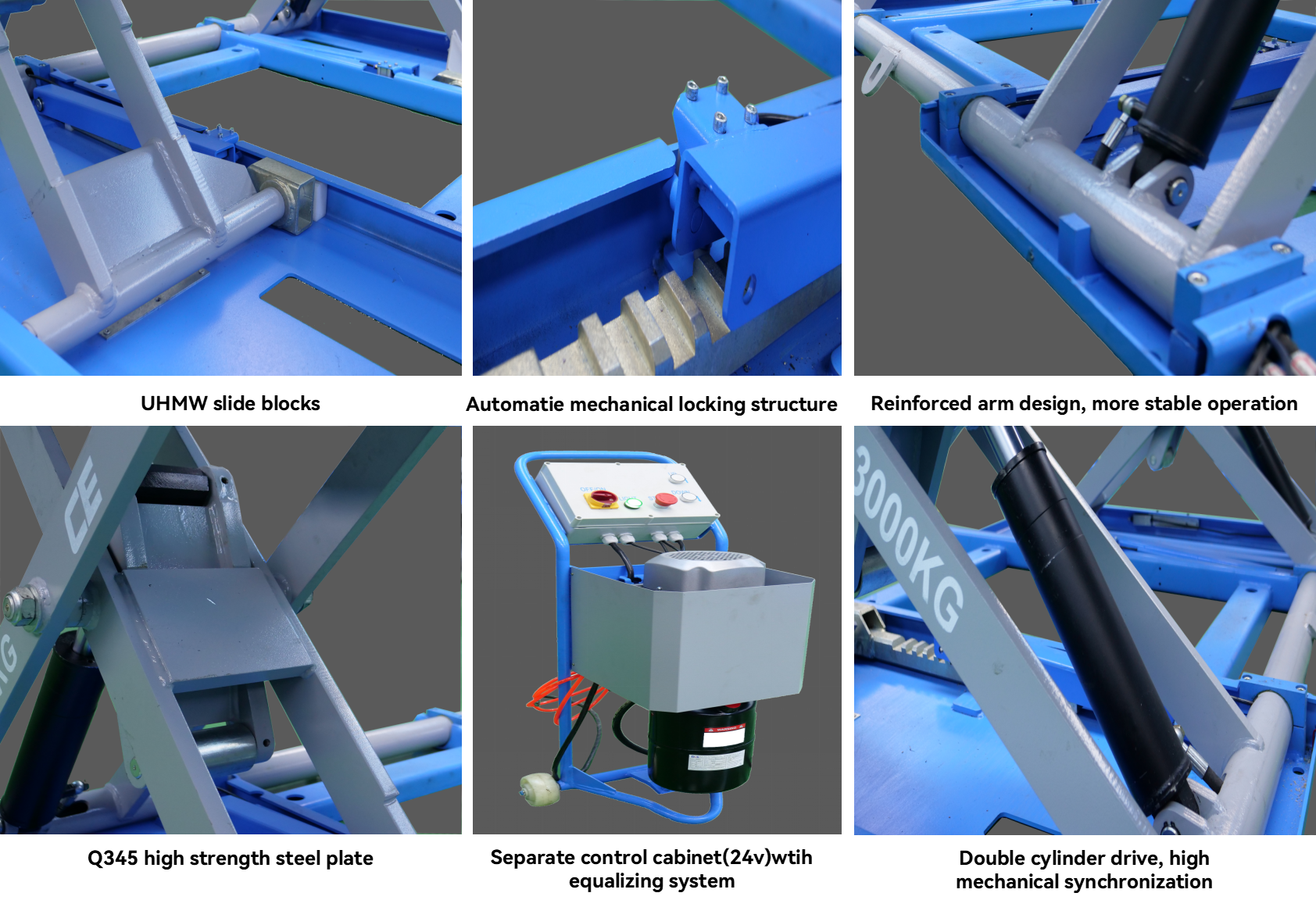

Features above ground obstruction
No above ground obstructionNo above ground obstructionNo above ground obstructionNo above ground obstructionNo above ground obstruction
3T Scissor lift Features

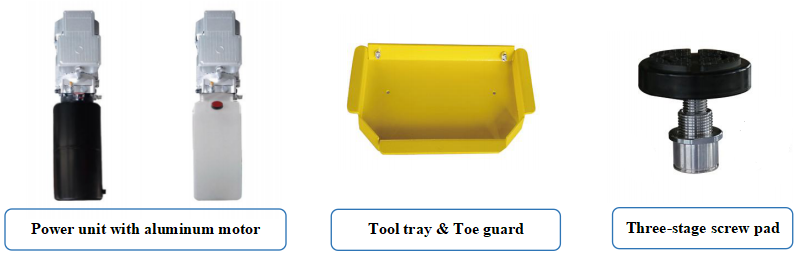

Optional Parts
3T Scissor lift Optional Parts
