Model No: L-2C-40S
4T/9000lbs,OH-type, Single lock manual release
· 4000KG lifting capacity
· 1800mm lifting height with dedicated drop-in pad
· 50 seconds lifting time
· Single lock manual release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Baseless design for easy movement of maintenance equipment under the raised vehicle
· Automatic shutdown of the power system upon contact between the vehicle roof and the rubber-protected overhead bar
· CE certificated by UK
· 1800mm lifting height with dedicated drop-in pad
· 50 seconds lifting time
· Single lock manual release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Baseless design for easy movement of maintenance equipment under the raised vehicle
· Automatic shutdown of the power system upon contact between the vehicle roof and the rubber-protected overhead bar
· CE certificated by UK
Column type :
Quantity :
category car lift
Technical Data4T category car lift4T category car lift4
T co4T category car lifth Type single lock liftoh Type single lock lift lift4T category car lift4T category car lift4T egory

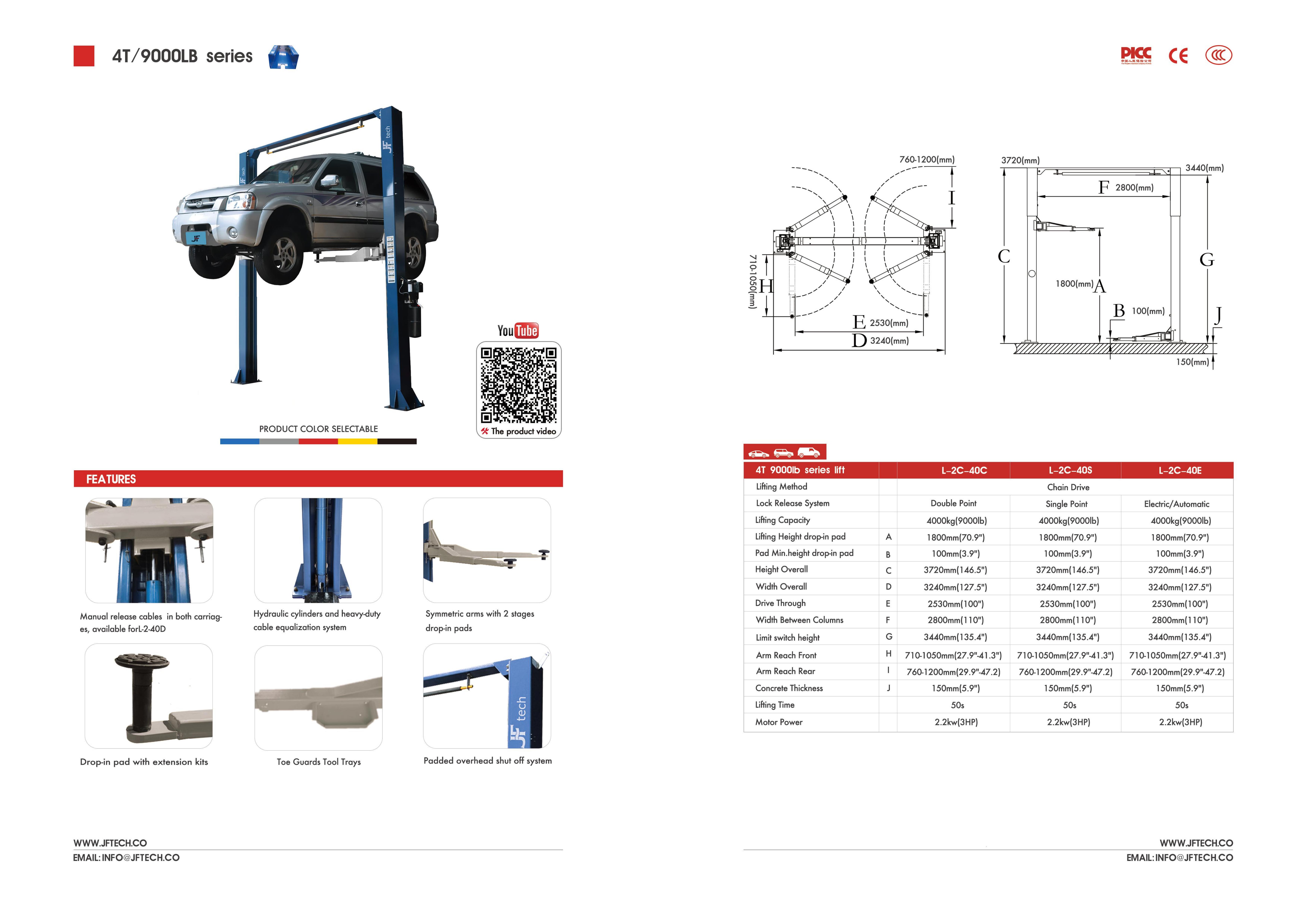

| MODEL NO. | L-2C-40C | L-2C-40S | L-2C-40E |
| Lock Release System | Double Point | Single Point | Electric/Automatic |
| Lifting Capacity | 4000kg/9000lb | 4000kg/9000lb | 4000kg/9000lb |
| Max Lifting Height | 1800mm/70.9" | 1800mm/70.9" | 1800mm/70.9" |
| Min Height | 100mm/3.9" | 100mm/3.9" | 100mm/3.9" |
| Drive Through | 2530mm/100" | 2530mm/100" | 2530mm/100" |
| Lifting Time | 50s | 50s | 50s |
| Overall Height | 3720mm/146.5" | 3720mm/146.5" | 3720mm/146.5" |
| Electricity supply | Muttiple choice for 110/220/230/240/380/400/415V | ||
Overall Dimension9000lbs two post car lift9000lbs two post car lift9000lbs two post car lift9000lbs two post car lift9000lbs two
Features
h Type single lock liftoh Type single lock liftoh Type single lock liftoh Type single lock liftoh Type single lock
Optional Partsoh Type single lock liftoh Type single lock liftoh Type single lock liftoh Type oh Type single lock liftoh Type single lock
