Model No: L-2C-40E
4T/9000lbs,OH-type, Electric lock manual release
· 4000KG lifting capacity
· 1800mm lifting height with dedicated drop-in pad
· 50 seconds lifting time
· Electric lock release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Baseless design for easy movement of maintenance equipment under the raised vehicle
· Automatic shutdown of the power system upon contact between the vehicle roof and the rubber-protected overhead bar
· CE certificated by UK
· 1800mm lifting height with dedicated drop-in pad
· 50 seconds lifting time
· Electric lock release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Baseless design for easy movement of maintenance equipment under the raised vehicle
· Automatic shutdown of the power system upon contact between the vehicle roof and the rubber-protected overhead bar
· CE certificated by UK
Column type :
Quantity :
4T category car lift4T category car lift4T category car lift9000 lbs category Car Lift9000 lbs category Car Lift9000 lbs category Car LiftElectric lock two
Technical Data9000 lbs category Car Lift9000 lbs category Car LiftElectric lock two post liftElectric lock two post liftElectric lock two
two、= post clear floor lifttwo post clear floor lifttwo post clear floor lifttwo post clear floor lifttwo post clear floor liftElectric lock two post lift
| MODEL NO. | L-2C-40C | L-2C-40S | L-2C-40E |
| Lock Release System | Double Point | Single Point | Electric/Automatic |
| Lifting Capacity | 4000kg/9000lb | 4000kg/9000lb | 4000kg/9000lb |
| Max Lifting Height | 1800mm/70.9" | 1800mm/70.9" | 1800mm/70.9" |
| Min Height | 100mm/3.9" | 100mm/3.9" | 100mm/3.9" |
| Drive Through | 2530mm/100" | 2530mm/100" | 2530mm/100" |
| Lifting Time | 50s | 50s | 50s |
| Overall Height | 3720mm/146.5" | 3720mm/146.5" | 3720mm/146.5" |
| Electricity supply | Muttiple choice for 110/220/230/240/380/400/415V | ||

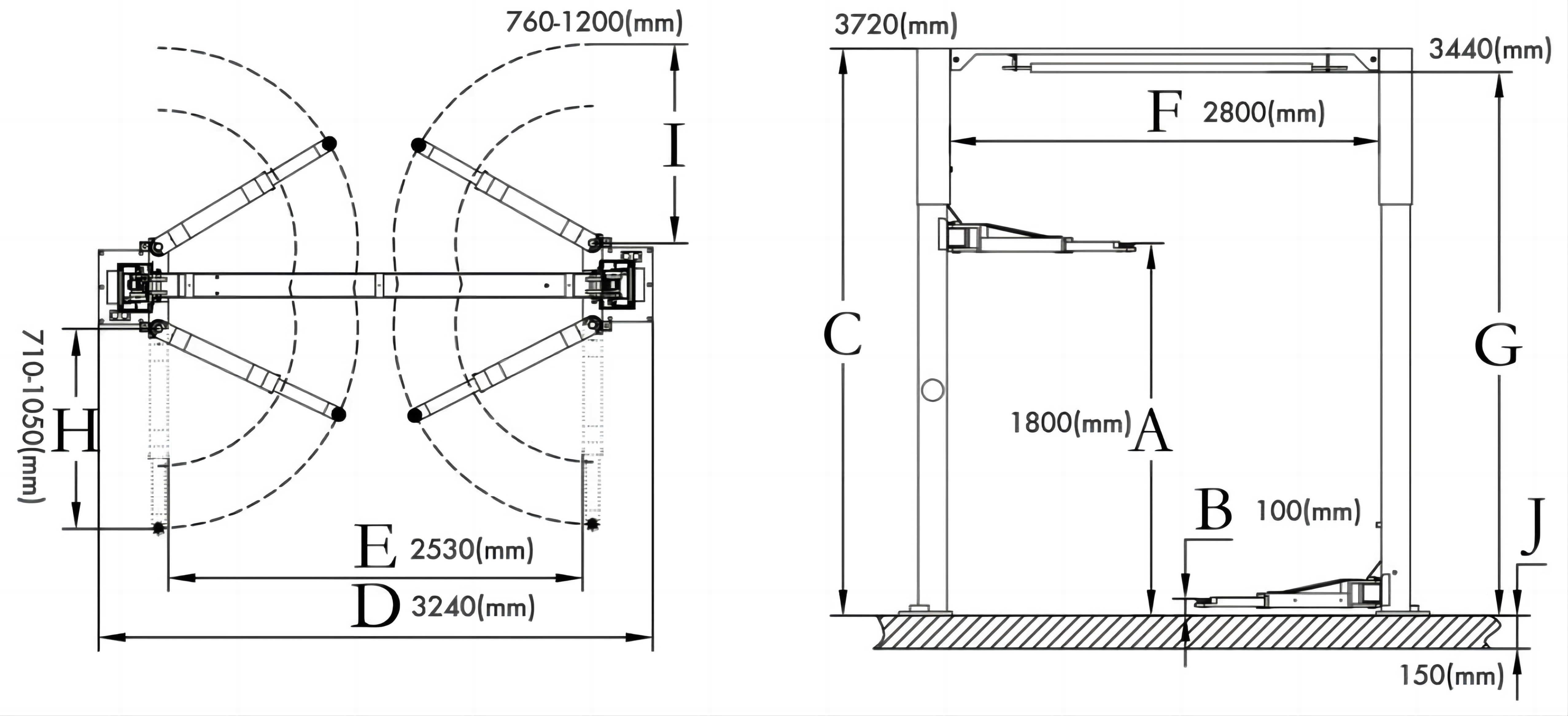

Overall DimensionElectric lock two post lift4T category car lift

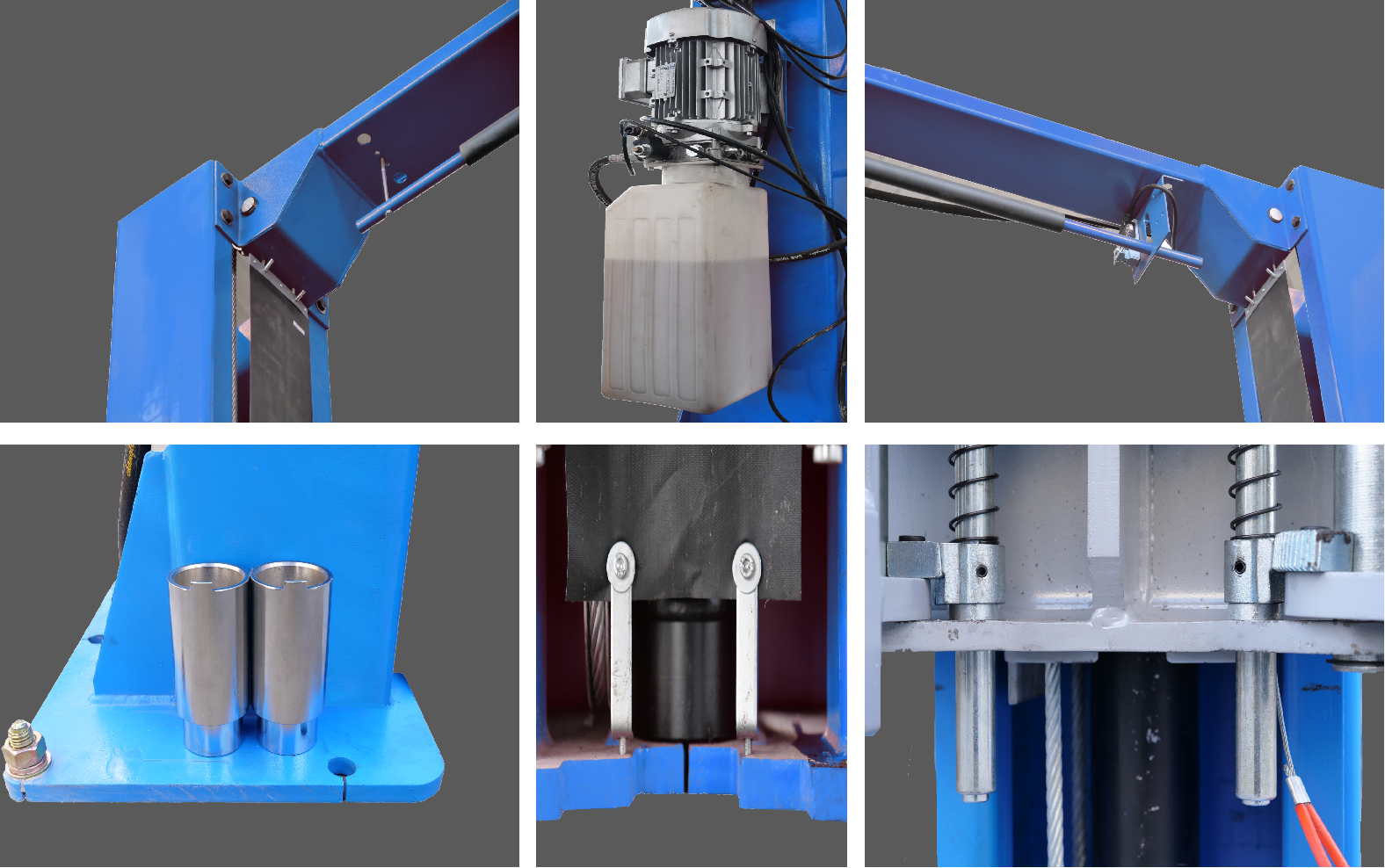

Features
Optional Parts
